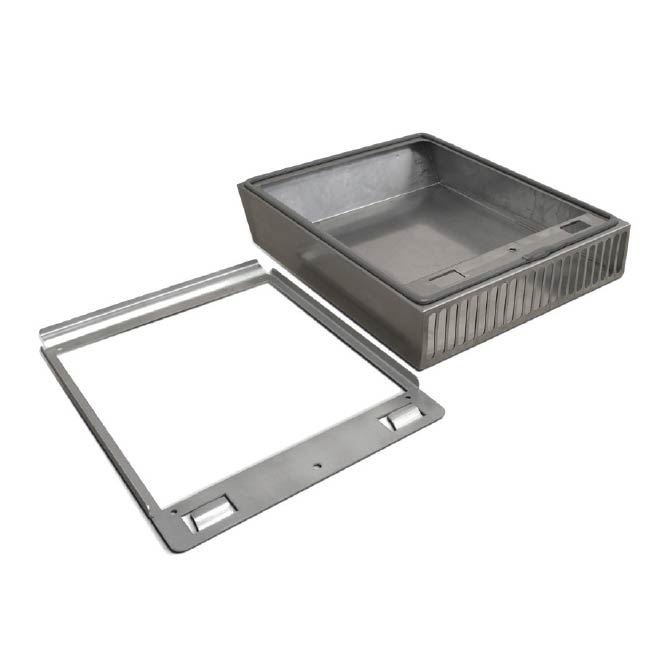

PROTECTION HOOD AND GRID IN STAINLESS STEEL IP 56 UL TYPE 1,12,4,4X

Guards designed to with stand the direct powerful blasts of water and detergent liquids that are normally used for sanitising food and pharmaceutical plants. Just a few holes are needed to mount them on the structure on the sides of the slits for the filtering/ventilation systems.

CODEWIDHT (A)HEIGHT
(B)=(B1+B2)
DEPTH
(C)
WHEELBASE
D x E
PANEL CUT
F x G
ASSOCIATED
VENTILATION
VENTILATION
GRID
IP GRADENEMA TYPE
HPS115U180235=(106+129)55105 x 13592 x 92ATV11 SERIES115 x 115IP56TYPE 12,
TYPE 4X
HPS150U215270=(125+145)62140 x 170125 x 125SERIE ATV22 SERIES150 x 150IP56TYPE 12,
TYPE 4X
HPS250U315370=(175+195)70240 x 270224 x 224ATV42 SERIES ATV43 SERIES ATV44 SERIES250 x 250IP56TYPE 12,
TYPE 4X
HPS325U390445=(210+235)75315 x 345291 x 291ATV54 SERIES
ATV55 SERIES
325 x 325IP56TYPE 12,
TYPE 4X

    Name

    Company Name

    Email (required)

    Phone

    Address

    Select the type of message request (required)

    QuoteInformation

    Message

    I accept the information for the confidentiality of data

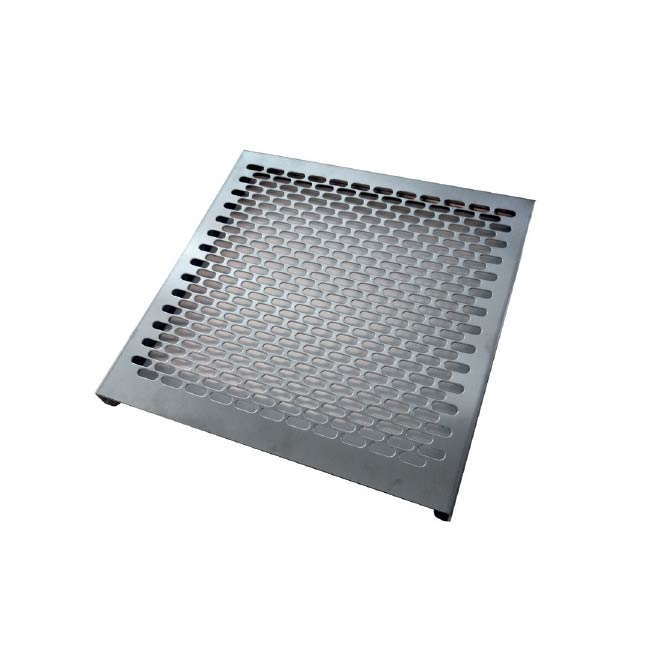

    GRID IN STAINLESS STEEL FOR ATV SERIES VENTILATION UNIT

    CODEDESCRIPTION
    C_ATV1000_MPX*GRID IN STAINLESS STEEL FOR ATV1 SERIES
    C_ATV2000_MPX*GRID IN STAINLESS STEEL FOR ATV2 SERIES
    C_ATV4000_MPX**GRID IN STAINLESS STEEL FOR ATV4 SERIES
    C_ATV5000_MPX**GRID IN STAINLESS STEEL FOR ATV5 SERIES
    * MINIMUM PACKAGE 10 PIECES
    ** MINIMUM PACKAGE 4 PIECES
